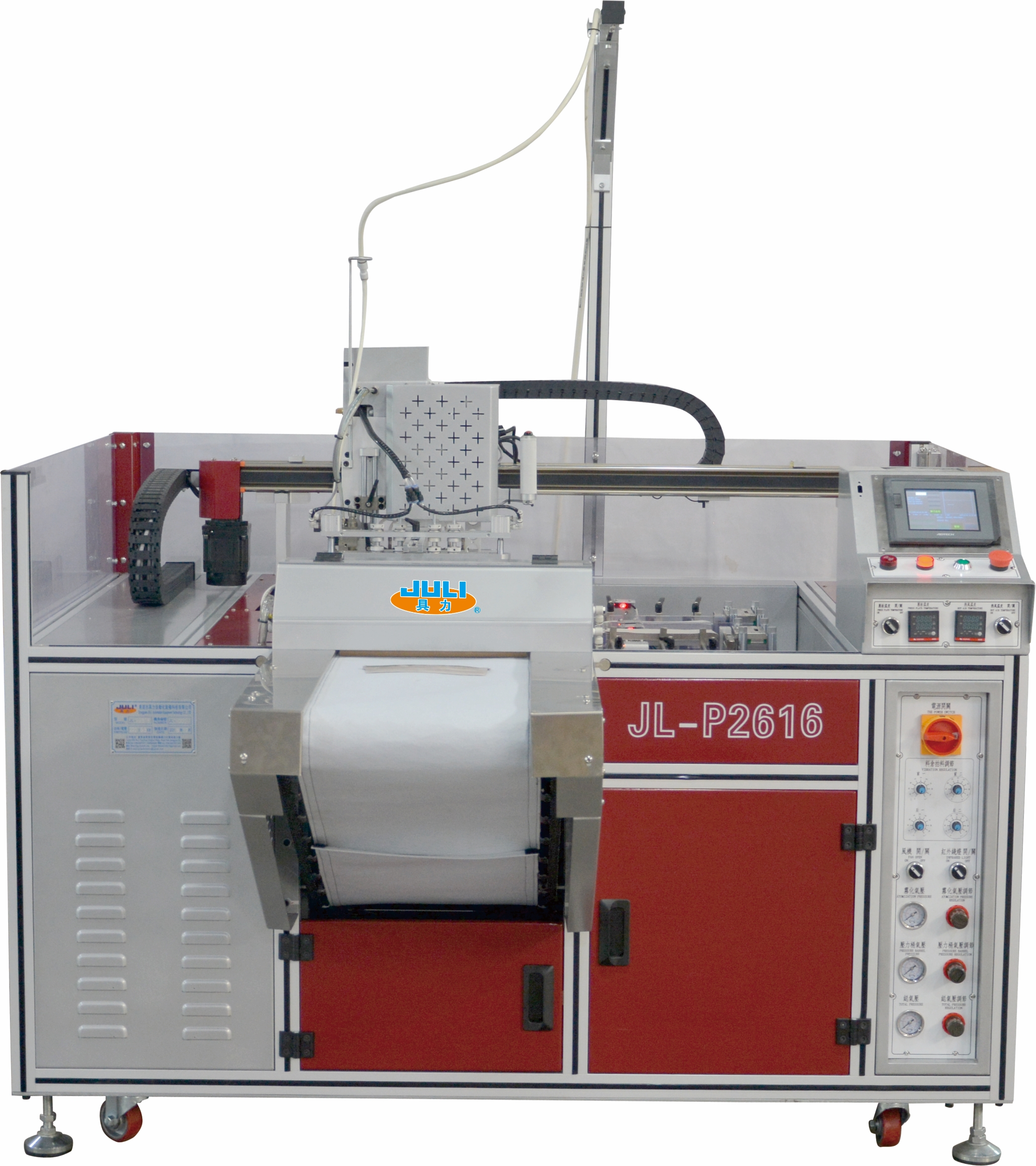

JL—P2616  噴膠貼合一體機

主要用途：適用于各種皮料的噴膠，貼合，TPU膠的熱壓貼合

工作范圍：260mm x 160mm

主要優點：

1，工序整合：將噴膠工序和貼合工序整合到一臺設備上完成，使產品的一致性得到保證，不會由于人為因素導致產品千差萬別。

2、適應性強：尺寸范圍在260mm x 160mm,兩件材料需要噴膠貼合工藝的都可以適用。也可以單獨用于對材料表面的噴膠。水性膠，油性膠，白膠，亞瑪力亞膠都適用于本臺設備。針對目前皮具行業工藝上的改進，將之前的表面噴膠改由TPU膠膜替代，我們?cè)谠O(shè)備上附加了適用于TPU膠膜的功能（加熱粘合）。

3、程序控制，操作方便，采用專業的噴膠運動控制器控制，噴膠路徑和運動速度可隨意編輯及保存。物料路徑也可以在電腦上編輯好后通過示教器上USB接口導入保存。設備也可以保存999個路徑文件，方便日后產品翻單生產。

4、料位整料：料倉有前后兩個料位，每個料位都有兩個拍料的擋邊，把料倉里的物料通過這個機構整理好保證定位精度，從而保證兩張物料的相對位置準確，以保證產品質量。

5、維護簡單：輸定帶示本設備的耗材，需要定期更換（也取決于使用頻率），輸送帶是由魔術貼連接，更換時無需工具方便快捷。

主要參數：

JL—P2616 Spraying glue bonding machine

MAIN APPLICATION：Suitable for spray ,adhesive ,TPU adhesive.

WORKING AREA：Effective working area 260mm*160mm

PRODUCT FATURE：

1、Process integration :glue spraying process and fitting process integratde into a single equipment to complete ,so that the consistency of the product is guaranteed,will not be caused by man-made factors resulting in a wide range of differences in the product.

2、The adaptability is in the range of 260mm x 160mm,and both materials are suitable for spray bonding process .It can also be used separately to spray glue on the surface of the material .Water -borne glue ,oily glue ,white glue are all suitable for this equipment .In view of the technological improvement in the leather industry,the former surface spray was replaced by TPU film .We also added the function (heating bonding) which is suitable for TPU film on the equipment .

3、Program control ,easy to operate :Control with professional spray motion controller,spray path and speed can bi edited and saved at will .The material path can also be edited on the computer and saved through the USB interface on the instructor .The equipment  can save 999 path files for future production.

4、Material level finishing there are two front and back material levels in the silo ,and each material level has two bezels of the eat material.The material in the silo is arranged through this mechanism to ensure the positioning accuracy,so that the relative position of the two pieces of material can be quaranteed to be accurate .To ensure the quality of the product.

5、Simple maintenance :The belt is the consumable of the equipment ,it needs to be replaced regularly(also depends on the applicable frequency ),the convey.

Main parameter：
