    噴膠機(含視覺)
    您當前的位置是:首頁>>產品中心>>噴膠機(含視覺)
    < >
    JL-P8050 數控噴膠機
    材質:
    規格:
    承重:
    顏色:0.00
    聯系電話:0769-85877871
    • 產品簡介
    • 產品案例

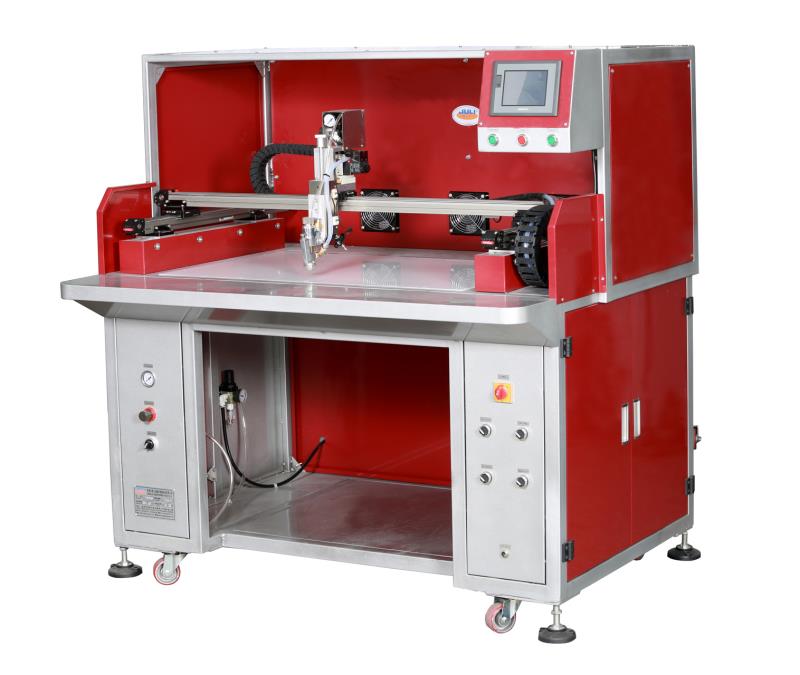

    JL—P8050數控噴膠機

    主要用途:適用于手袋,銀包,箱包,鞋類,禮品盒等行業材料的噴膠。

    工作范圍:800mm x 500mm

    適用膠水:
    白膠,水性膠,亞么尼亞膠

    主要優點:

    1:提高效率,節省人手:噴膠運行平穩,速度快,可節省2-4人,有效提高生產效率,降低人工成本。

    2、節省膠水,降低成本:運行穩定的數控噴膠系統,進口氣動噴槍控制精細,噴膠均勻,膠水寬度3-50mm,比傳統噴膠節省膠水40%-60%。

    3、操作簡單,方便;手動,腳踏,和自動控制系統。用戶可直接在觸屏上進行任意圖形的設定,操作簡單方便(手動輸入或示教的方式輸入均可)。系統可儲存圖形多達999個(規則或者不規則)。

    4、物料放置方便快捷:附感應裝置自動上升料臺,可自行感應物料高度并自動上升到哦哦哦適應高度后進行噴膠,噴膠距離控制更精確??梢淮涡苑胖枚嗉锪?,減少放料時間提高生產效率。

    5、環保節能:設備具備抽風系統,可將噴膠時產生的膠水味和霧氣進行過濾處理,設備待機時,噴膠裝置全封閉,防止膠水揮發

    主要參數:

    型號

    Model

    JL-P8050

    額定電壓

    Rated voltage

    AC220V

    額定功率

    Rated power

    0.75KW

    噴膠范圍

    Working area

    800mm*500mm

    抽風方式

    Take out wind way

    風筒式軸流抽風機

    外形尺寸

    Dimensions

    1090x1410x1510mm

    X軸驅動電機

    The X axis drive motor

    57JSFM1430P系列伺服電機

    Y軸驅動電機

    The Y axis drive motor

    57JSFM1430P系列伺服電機

    下槍方式

    Spray gun down way

    氣缸下槍

    最大速度

    Maximum speed

    50mm/s



    JL—P8050 Numerical control spray glue machine

    MAIN APPLICATION:
    It `s suitable to spray glue large area for handbag ,wallet ,luggage ,footwear,gift box etc.

    WORKING AREA:Effective working area 800mm*500mm

    SUITABLE GLUE: White glue ,water-based glue ,Chloroprene adhesive

    PRODUCT FATURE:
    1、To improve efficiency ,save labor costs ,spray glue speed fast ,can save around2-4 workers ,effectively to improve the production efficiency,reduce labor costs.

    2、Save the glue ,to reduce the cost :It has automatic glue control system,spray glue more correct,and it also hans adjustable spray glue gun head,the spray width is 3-50mm,it saves glue 40%-60% than finishing by hand。

    3、It is easy to feeding material: it has induction system that can make work table rise automatically .it can induce the material height and rise to the correct height and then work automatically ,control the spray distance well ,you can put more material to the work table in one times that can reduce feeding material time to improve the productionfficiency.

    4、Easy to operation:the machine is designed with manually operation ,foot pedal and automatic control system ,besides ,you can set the spray glue graph on the touch screen ,you can choice manual set on the touch screen or use USB to transport the graph and stored graphics up to 999(regular or irregular).

    Main parameter:


    型號

    Model

    JL-P8050

    額定電壓

    Rated voltage

    AC220V

    額定功率

    Rated power

    0.75KW

    噴膠范圍

    Working area

    800mm*500mm

    抽風方式

    Take out wind way

    Wind tube axial flow fan

    外形尺寸

    Dimensions

    1090*1410*
    1510mm

    X軸驅動電機

    The X axis drive motor

    57JSFM1430P Series servo motor

    Y軸驅動電機

    The Y axis drive motor

    57JSFM1430P Series srvo motor

    下槍方式

    Spray gun down way

    Cylinder add pressure

    最大速度

    Maximum speed

    50mm/s
